Hikmicro | Lynx-S PRO 10mm Smart Thermal Monocular

The HIKMICRO Lynx LE10 offers outstanding performance for its size. The 256x192 12um 35mK thermal sensor provides superb performance out to 100-150m, making it a perfect choice for locating and identifying rabbits, birds and squirrels. The super compact HIKMICRO LE10's enhanced performance makes it an ideal choice for those looking to improve their identification ability when scanning farm yards and barns, as the larger sensor allows the thermal to pick out higher levels of detail when scanning an area quickly. Like every HIKMICRO product you have the ability to stream your vision straight from the thermal to a smart phone or capture the footage and access it within seconds on your phone for easy sharing on social media.

Joining the range of HIK Micro thermal monoculars – the Lynx-S LE10 is focused on delivering high-level thermal performance at an entry-level price point.

At the heart of this enhanced performance is the 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.

The Lynx-S 10mm offers the same software as the more expensive HIK models and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The LE10 can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record your observation experience.

The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them.

• Sensor256x192px @ 12µm
• Objective Lens (Focal Length)10 mm
• Detection Range (Human 1.8m x 0.5m)458 m
• Type VOx Uncooled Focal Plane Arrays
• Resolution, pixels 256 x 192 PX
• Pixel pitch, um12µm
• Frame rate, Hz 25 Hz
• NETD <35mK
• Objective lens F1.0
• Magnification (optical) 1x
• Magnification (Digital) 1x, 2x, 4x, 8x
• Field of view 18.00° × 13.55° (H × V)°
• Type 5.08mm, LCOS
• Resolution, Pixels 720 × 540
• Built-in memory, GB8
• Hot trackingYes
• WIKI Hot spotYes
• T-Vision App supportYes
• Degree of protection, IP code IP67
• Dust protection Protected against dust ingress
• Water protection Protected against temporary submersion in water
• Operating temperature range -20 °C to 55 °C
• Dimensions, mm 158 mm x 61 mm x 57 mm
• Operating time on battery (WIFI & Hot tracking disabled) 8 Hours continuous running
• Charging interface USB-C
• Battery capacity after 1000 cycles 80%
• Main Unit3 Years
• Battery2 Years

• 10mm focal length - 1.0 Aperture
• 256x192px sensor
• 12um pixel pitch

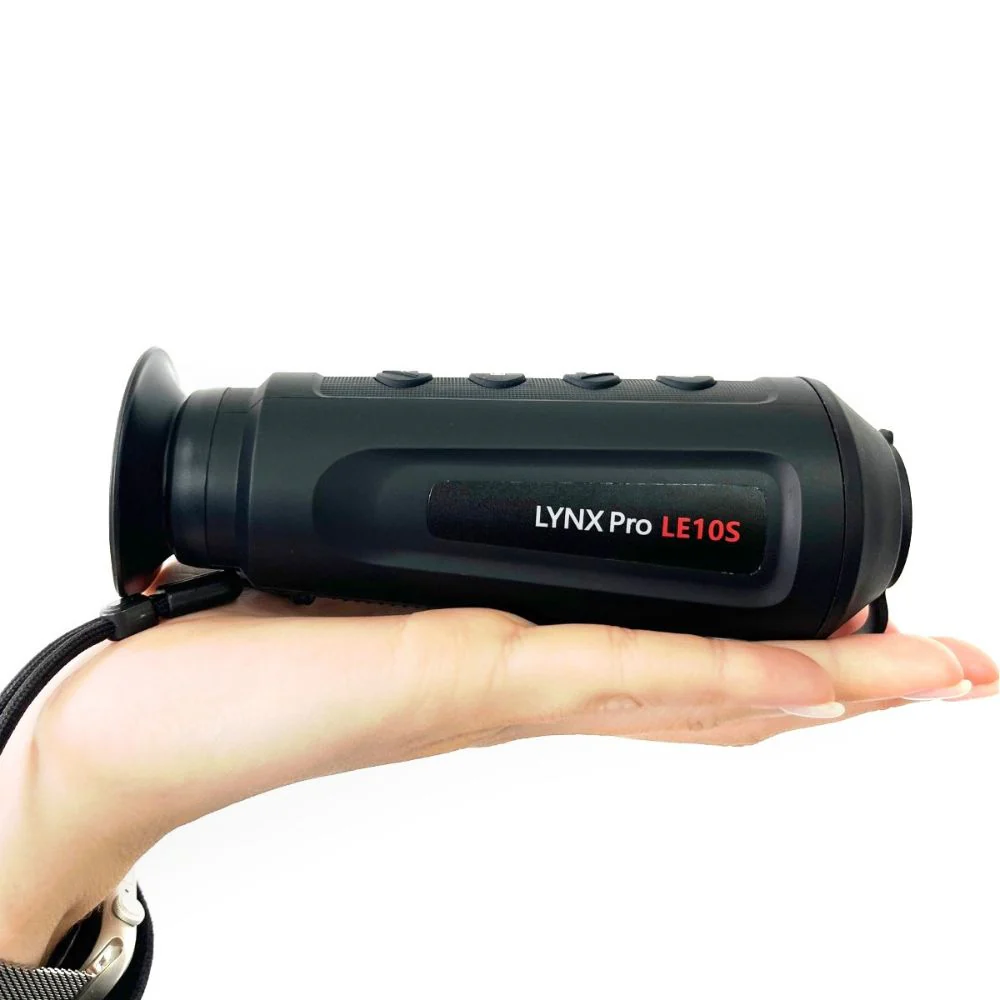

• Pocket sized
• Wifi Enabled
• 458m detection range - Human Size
• 25hz Refresh rate
• 4 colour palletes
• Around a 150m Detection Range - Fox
• 35mK Sensitivity
