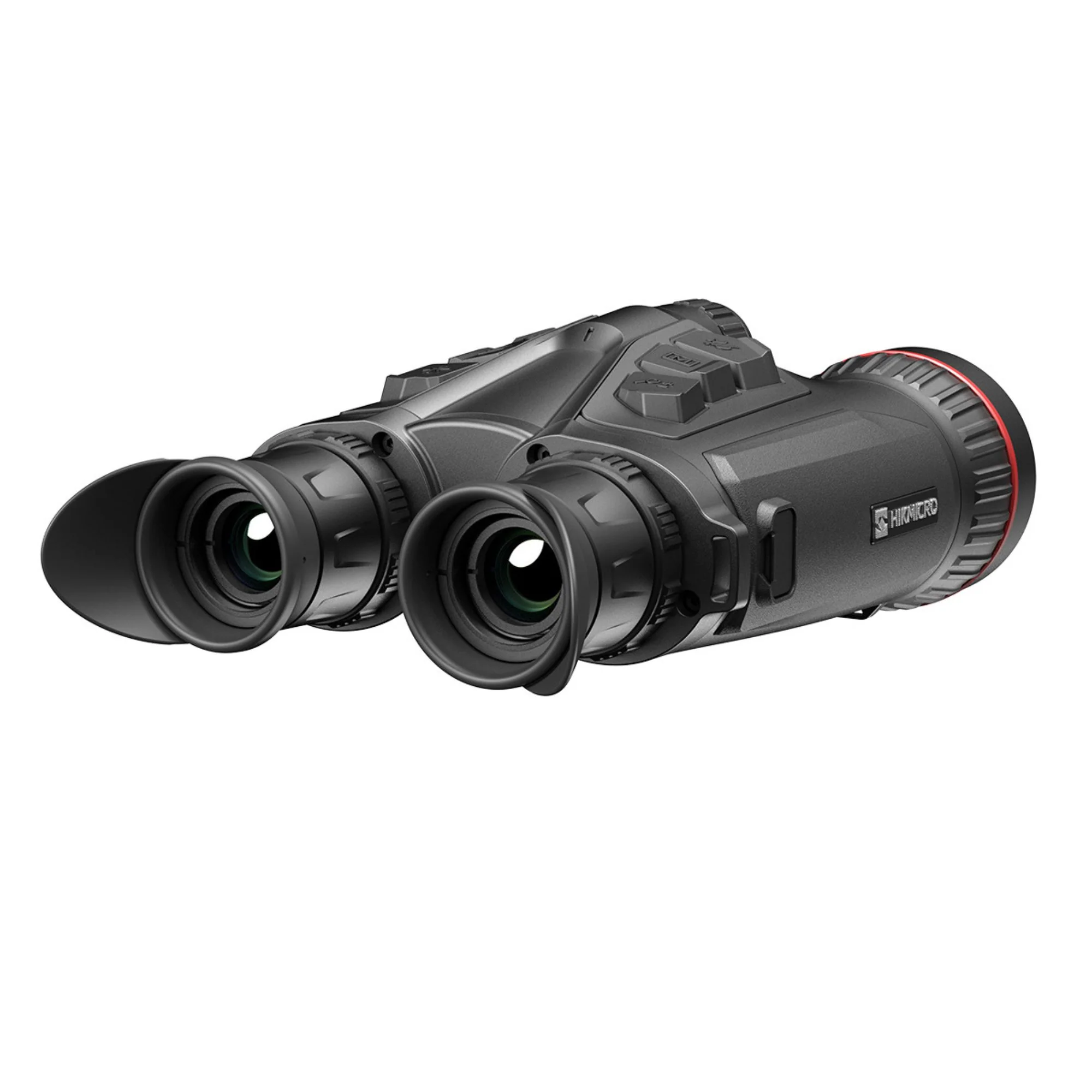

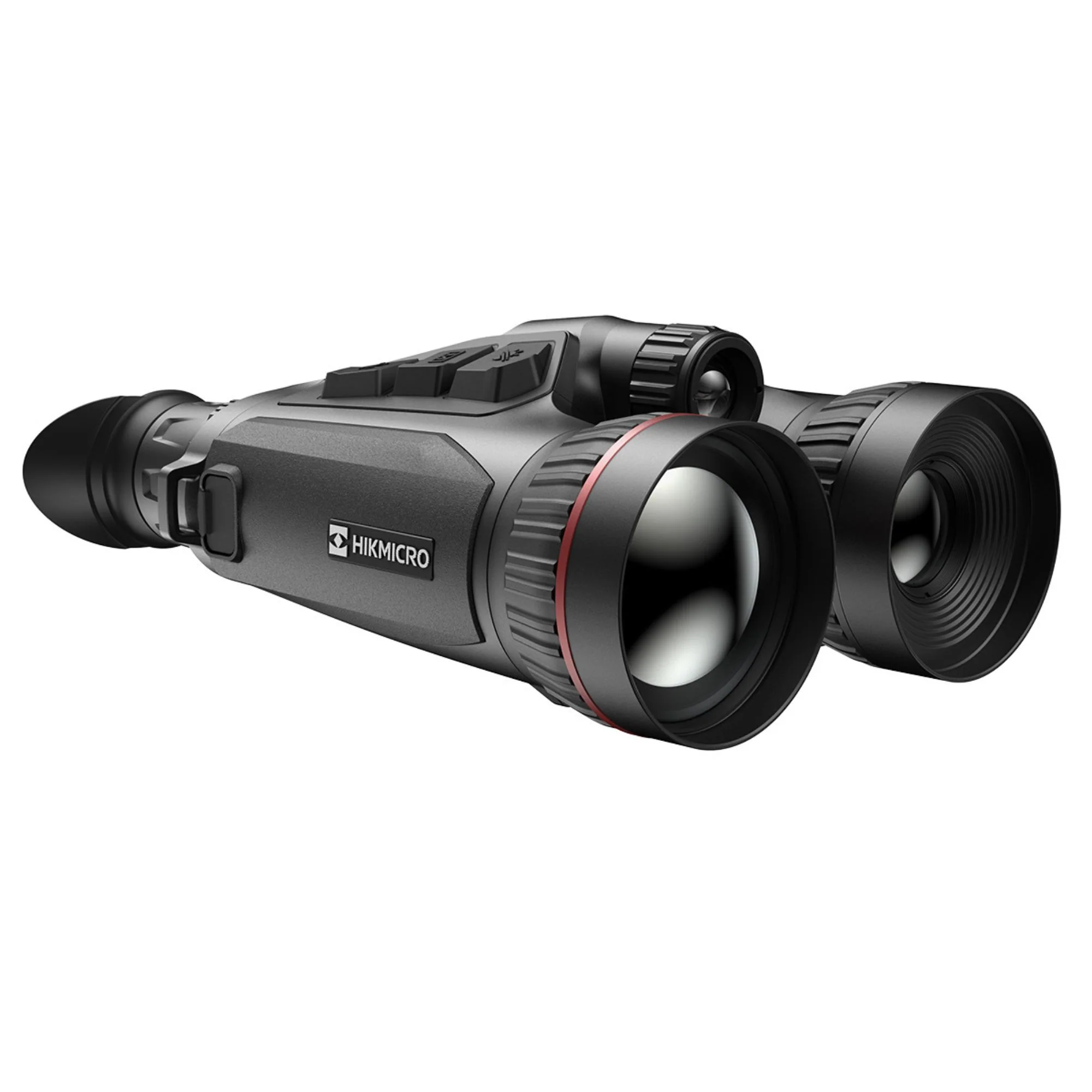

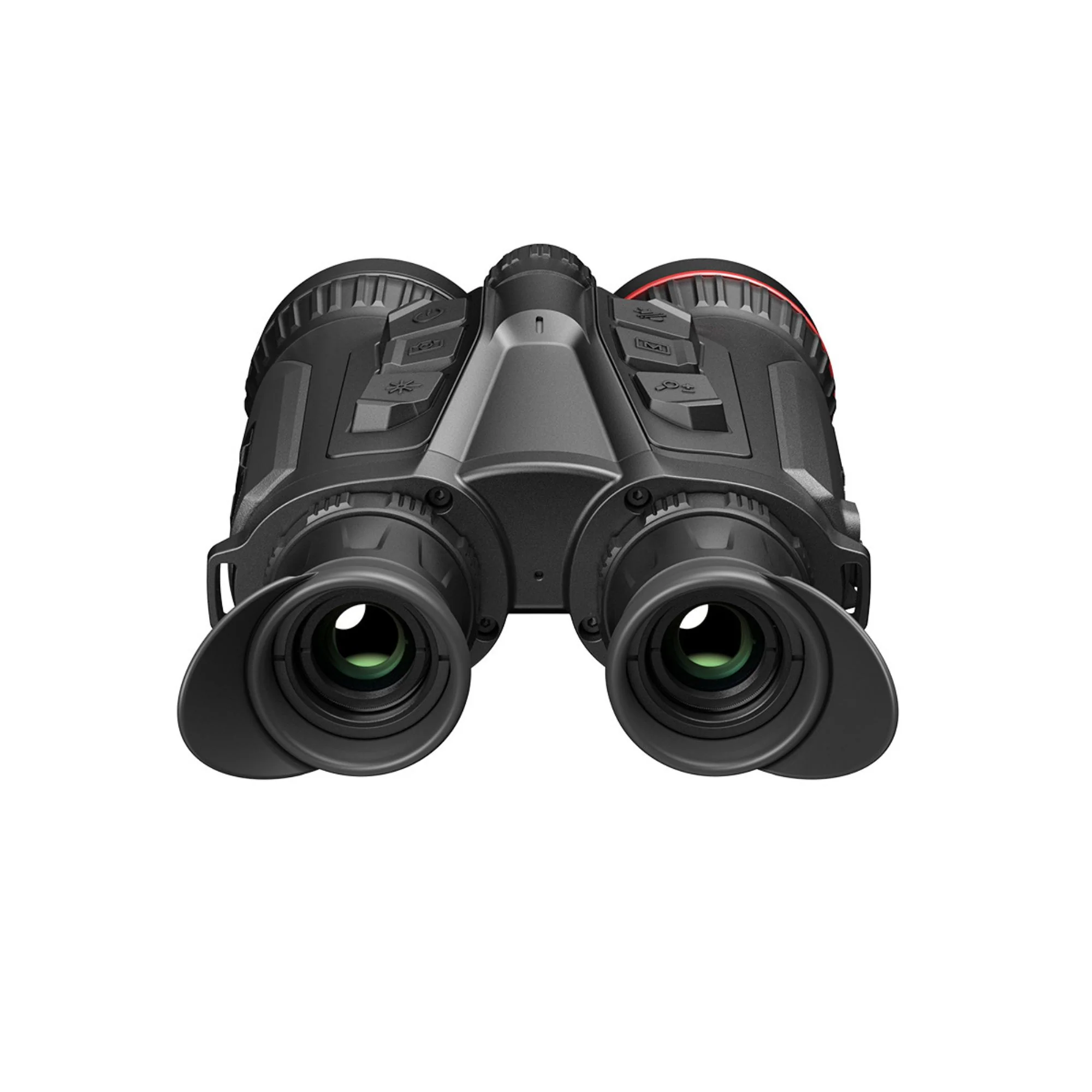

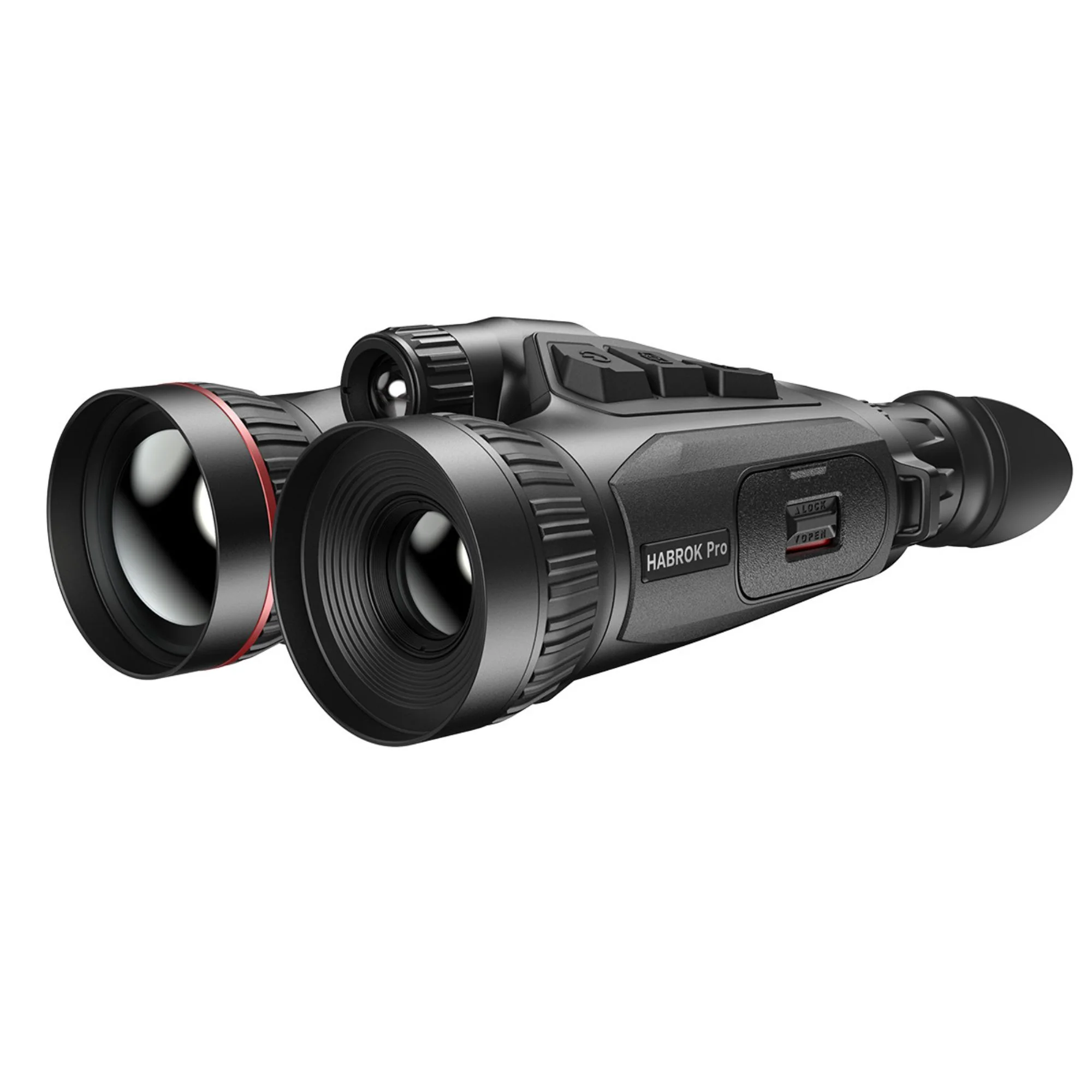

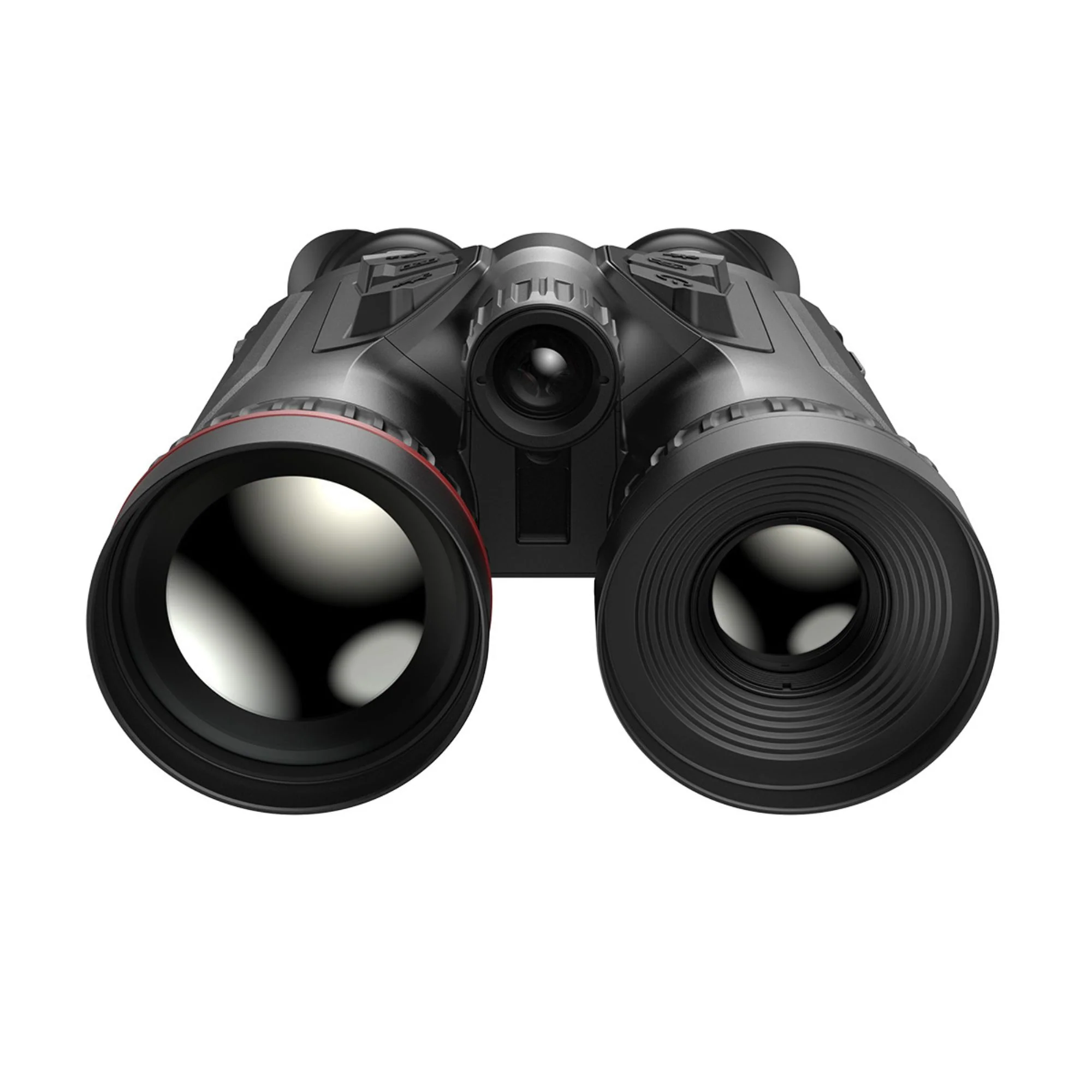

Hikmicro | Habrok Pro HX60LS 50Hz Multi-Spectrum Thermal Binocular

• High-End Thermal Imaging: 1280×1024 @12μm 50Hz thermal detector with NETD <15 mK delivers ultra-clear, detailed images in complete darkness, rain, or fog.
• Powerful Optics: 60 mm F1.0 lens provides thermal detection up to 3100 m for precise long-range observation.
• 4K Digital Clarity: 3840×2160, 60 mm F2.2 camera captures high-resolution digital images for situational awareness.
• Vivid Display: 0.49-inch 1920×1080 OLED ensures crisp, real-time visuals.
• Enhanced Targeting: Replaceable 850 nm IR emitter and 1000 m laser rangefinder boost operational versatility.
• Extended Operation: Replaceable battery pack supports 5.5+ hours of continuous use.

The HIKMICRO Habrok Pro HX60LS features a cutting-edge 50 Hz thermal sensor, delivering ultra-smooth, real-time imaging that enhances target detection and tracking in dynamic environments. Combined with thermal-digital fusion, a 4K camera, and OLED display, it provides a clear, actionable view that accelerates decision-making. Long-range targeting, extended battery life, and an ergonomic, lightweight design keep operators mission-ready during extended operations. Engineered for precision and reliability, the HX60LS gives professionals the confidence, clarity, and responsiveness needed to perform effectively in high-stakes, fast-moving scenarios.

• Image SensorVOx Uncooled Focal Plane Arrays
• Max. Resolution1280 × 1024
• Frame Rate50Hz
• Pixel Interval12μm
• Response Waveband8μm to 14μm
• NETD<15 mK (@25°C), F#=1.0
• Lens (Focal Length)60mm, F1.0
• Focus ModeFocus Ring
• Detection Range3100m
• Min. Focusing Distance3m
• Magnification2.6x–20.0x (7.7x)
• Field of View (H × V), Degrees / m @100m14.6° × 8.8° / 25.6m × 15.4m
• Digital Image Sensor1/1.8'' Progressive Scan CMOS
• Max. Resolution (Digital)3840 × 2160
• Focal Length (Digital)60mm, F2.2
• Min. Working Distance (Digital)3m
• Focus Mode (Digital)Focus Ring
• Magnification (Digital)5.5x–22.0x (4x)
• Field of View (H × V, Digital), Degrees / m @100m7.3° × 4.1° / 12.6m × 7.2m
• Smart IRYes
• IR Illuminator Wavelength850nm
• Viewing Range at Night400m
• Replaceable IR IlluminatorYes
• Display0.49 inch OLED, 1920 ×1080
• PalettesThermal
• Exit Pupil8mm
• Eye Relief15mm
• Diopter (Range)-5D~+3D
• Brightness AdjustmentYes
• Tone AdjustmentCold, Warm
• Contrast AdjustmentYes
• FFC ModeAuto, Manual, External Correction
• Zoom ProNo
• Image Pro 3.0Yes
• Sync ProYes
• Record VideoYes
• Capture SnapshotYes
• Audio RecordingYes
• StorageBuilt-in EMMC (64 GB)
• PIPYes
• HotspotYes
• Hot TrackYes
• Digital Magnetic CompassYes
• GPSYes
• Local AlbumYes
• Standby ModeYes
• Battery TypeReplaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time5.5h (25°C, hotspot off, LRF on)
• Dimension152.8mm × 81.95mm × 231.5mm (6.0" × 3.2" × 9.1")
• Working Temperature-30℃ ~ +55℃
• Weight1050g with battery pack
• Protection LevelIP67
• Interpupillary Adjustment Range60mm to 74mm
• Mounting Adapter1/4“-20-UNC
• Safety Class for LaserClass 1
• Wavelength (Laser)905nm
• Max. Measuring Range1000m
• Measurement Accuracy±1m
• Min. Measuring Range10m

• High-End 1280×1024 Thermal Detector – Delivers ultra-clear images with impressive detail recognition.

• 50Hz High-Speed Thermal Imaging – Provides smooth, real-time visuals in dynamic environments.

• Ultra-Sensitive NETD <15 mK – Ensures exceptional contrast and clarity even in low-visibility conditions.

• 60 mm F1.0 Thermal Lens – Supports long-range detection up to 3100 m for precise targeting.

• Advanced 4K Digital Camera – 3840×2160 resolution captures high-definition images for situational awareness.

• 60 mm F2.2 Digital Lens – Combines wide coverage with sharp image clarity for digital observation.

• 0.49-inch 1920×1080 OLED Display – Offers crisp, vivid visuals for effortless viewing in any light.

• Replaceable 850 nm IR Emitter – Enhances low-light performance and covert observation capabilities.

• 1000 m Laser Rangefinder – Provides accurate distance measurement for tactical decision-making.

• Multi-Spectrum Fusion – Combines thermal and digital imaging for enhanced target identification.

• Extended 5.5+ Hour Runtime – Replaceable battery pack supports prolonged field operations.

• Lightweight 1050 g Design – Maximizes portability without sacrificing performance.

• Compact & Ergonomic Form Factor – Comfortable to hold during extended use.

• Versatile Field Applications – Ideal for hunting, birding, wildlife search, rescue, and marine operations.

• Sync Pro Ready – Enables seamless data sharing and connectivity in the field.
